AERO 1000 Engine

Engine:

Water Cooled

 HP:

max RPM:

35hp

9500rpm

Bore/Stroke:

75mm / 56.5mm
Displacement: 250cc

Reduction Type:

Belt & Centrifugal Clutch

Blade Type:

2, 3 or 4 Blade Prop

Approx. Thrust:

114 kg (250 lbs)

Electric Start Method:

Digital CDI With Rev-Limiter

Fuel Tanks:

12 or 17.5 Litre Tank Available

Flight time:

3.8 Litres an hour

Max Flight Weight:

272 Kg (600 Lbs)

Engine ONLY Dry Weight:

37.60 Kg (83 lbs)

Unit Total Dry Weight:

(Engine & Cage)

With Prop, Tanks

and Solo Quad etc.

82.6 kg (182lb)
Download Aero-100 Manual v1.4



Some design changes may have been made since these photos were taken.

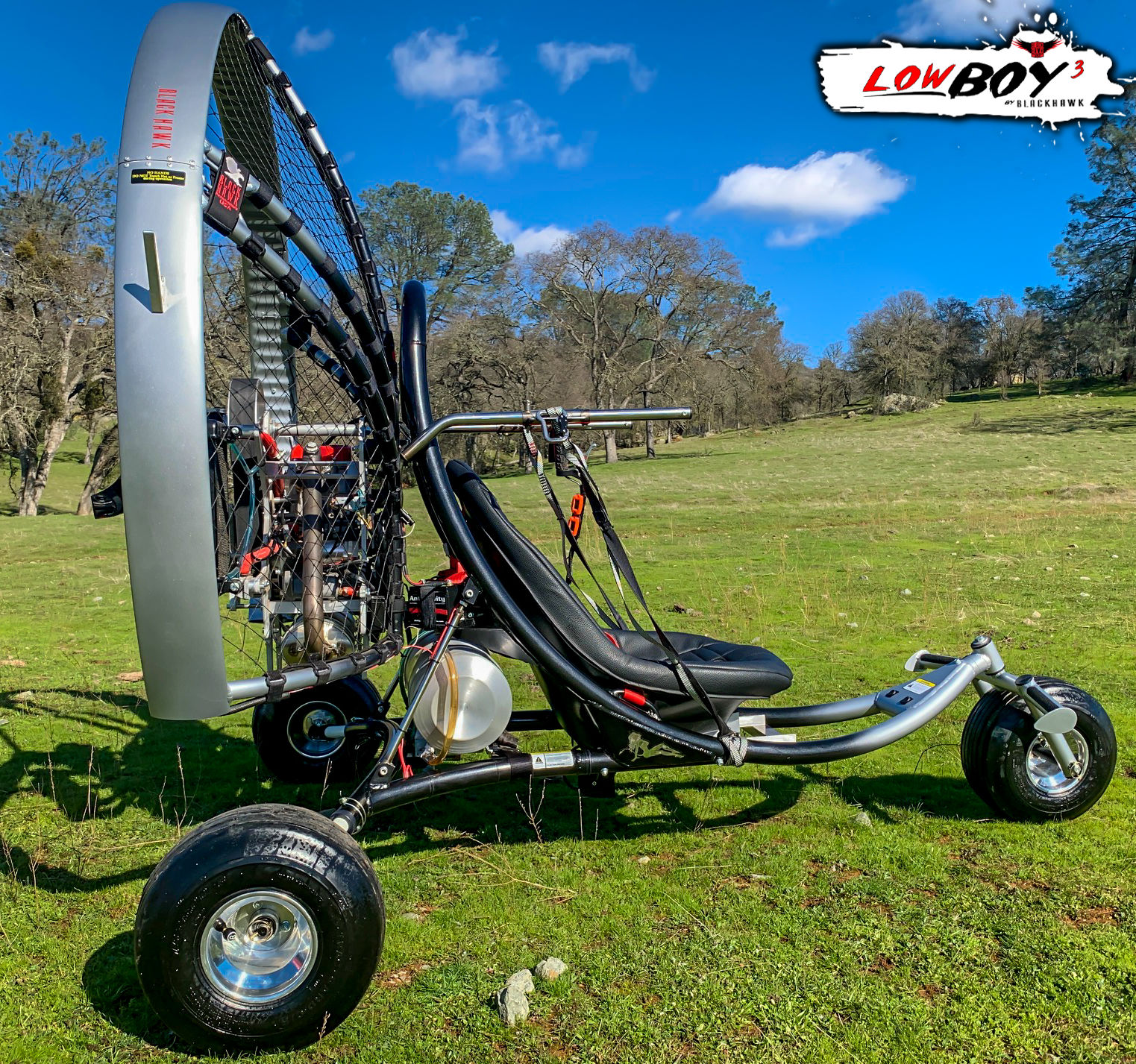

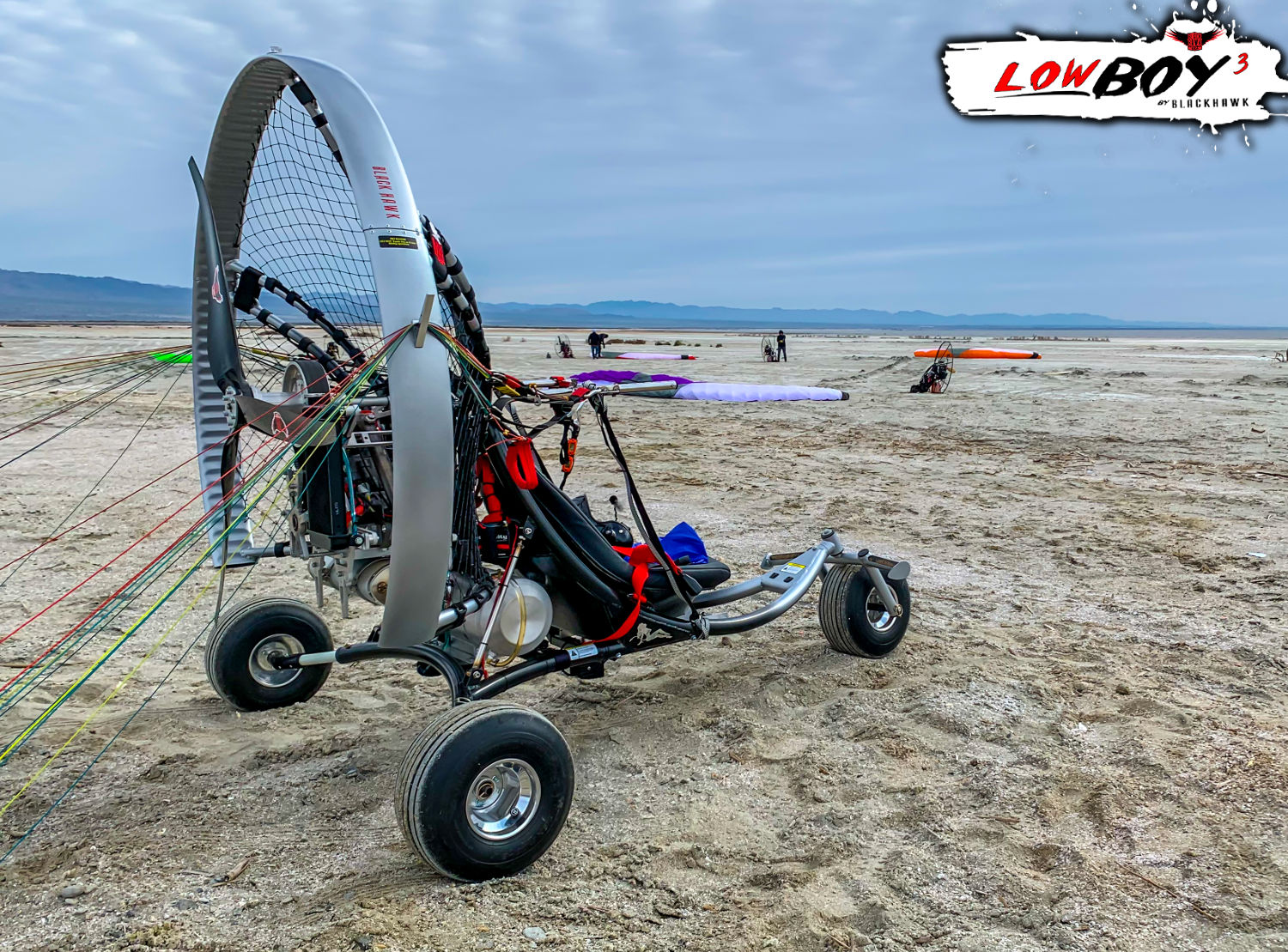

Low Boy-3 SOLO TRIKE

Due to Trike’s inherent instability whilst on the Ground, Trike’s are only recommended for experienced Pilots.

Engine:

Water Cooled

 HP:

max RPM:

39.5hp

9500rpm

Displacement: 275cc

Bore/Stroke:

77mm / 59mm

Reduction Type:

Belt & Centrifugal Clutch

Blade Type:

3 or 4 Blade Prop

Approx. Thrust:

125 kg (276 lbs)

Electric Start Method:

Digital CDI With Rev-Limiter

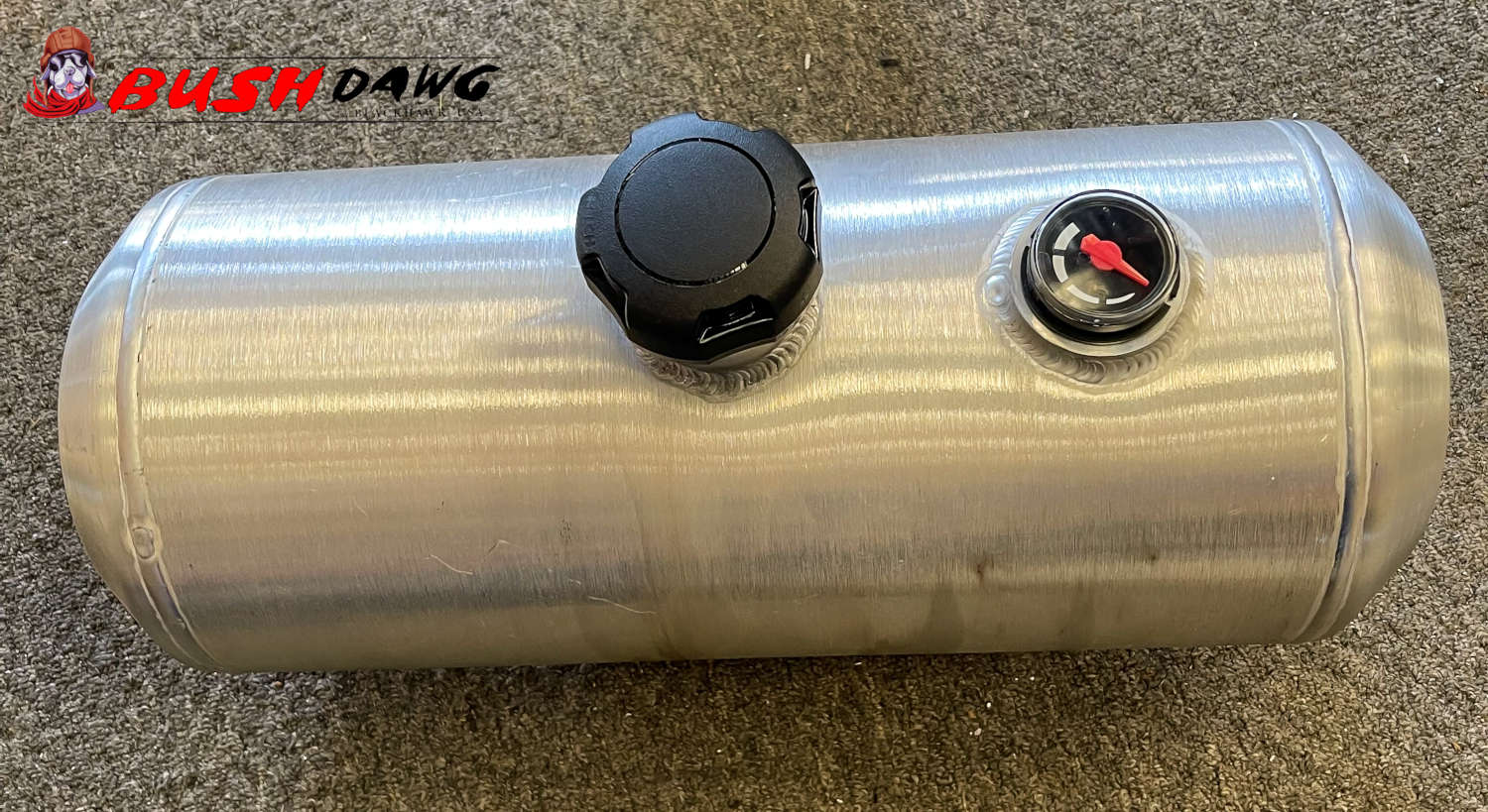

Fuel Tanks:

12 or 17.5 Litre Tank Available

Flight time:

3.8 Litres an hour

Max Flight Weight:

363 Kg (800 Lbs)

Engine ONLY Dry Weight:

37.60 Kg (83 lbs)

Unit Total Dry Weight:

(Engine & Cage)

With Prop, Tanks

and Solo Quad etc.

82.6 kg (182lb)
Download Aero-100 Manual v1.4

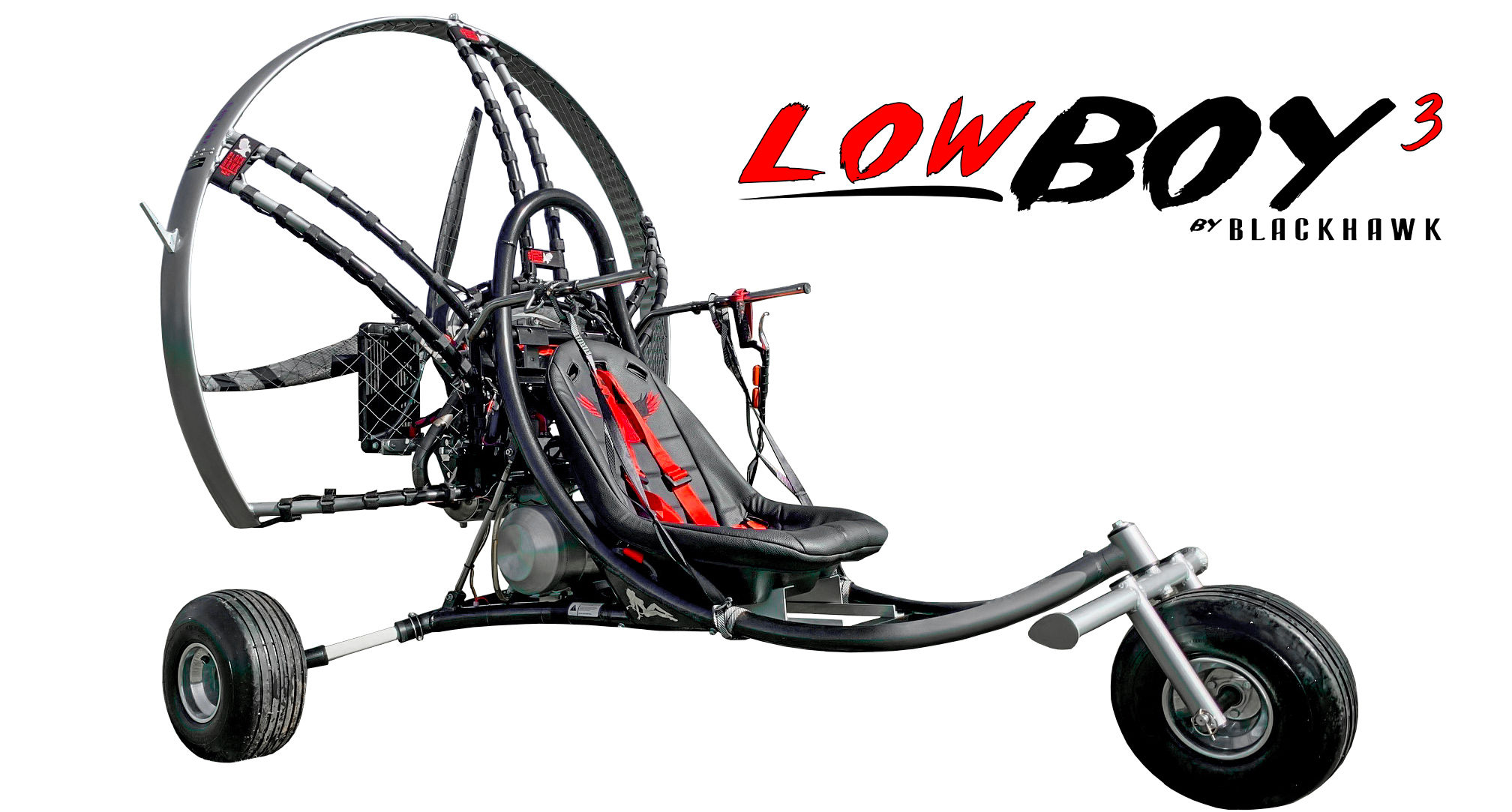

:: LowBoy-3 High Output SOLO TRIKE ::





**Comes Standard with the Quad configuration. Trike configuration is $125 less.
