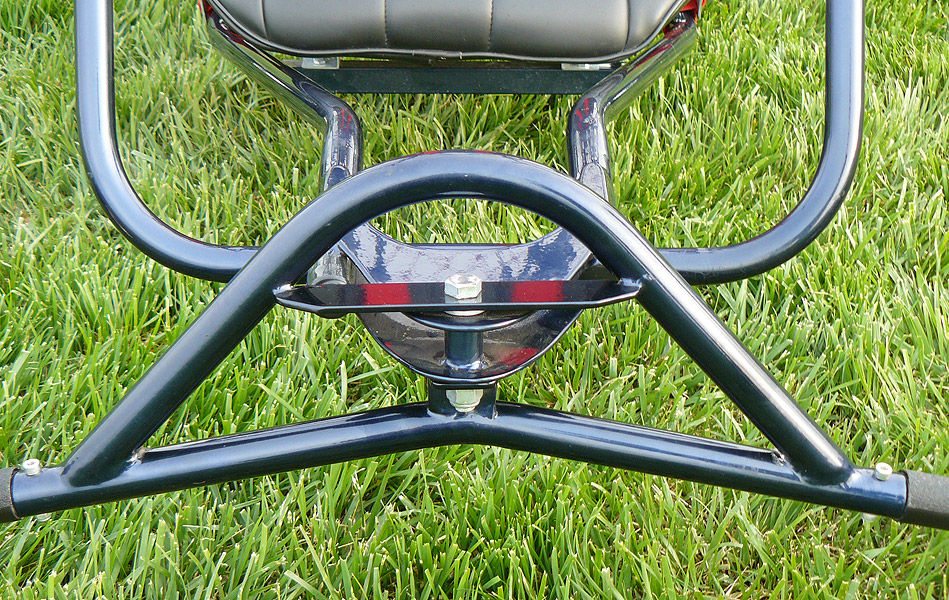

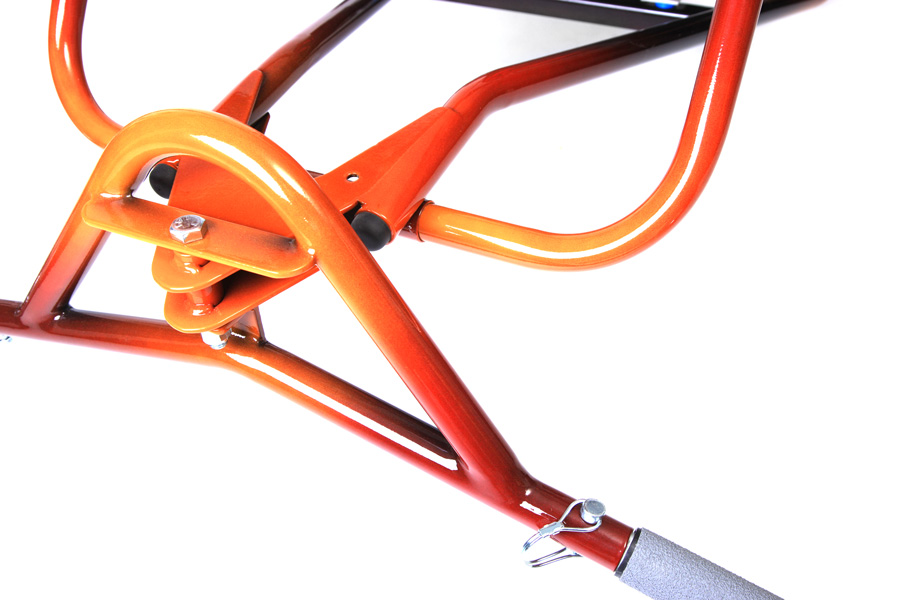

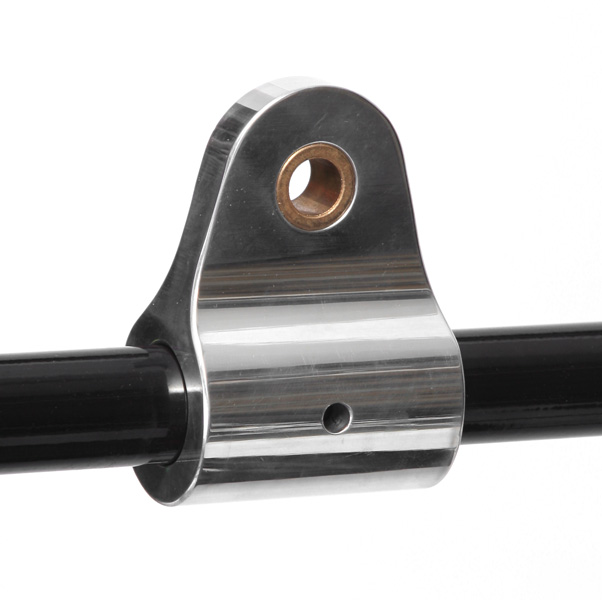

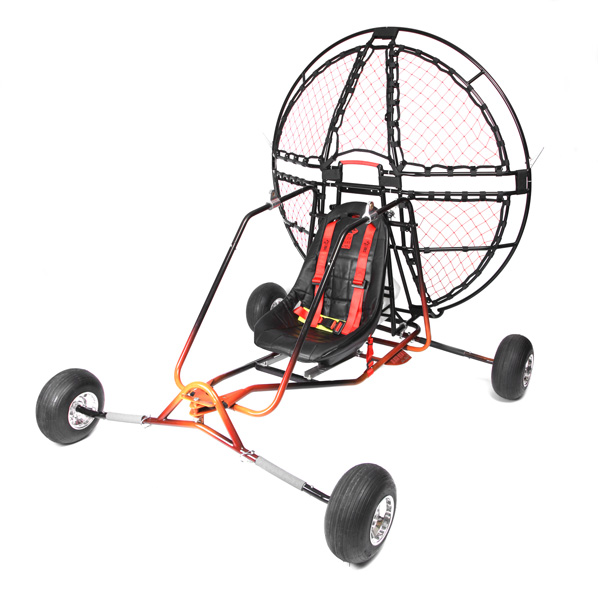

The new LowBoy-2 features a new "raked" front end, "angled" rear outer stub axles, lower ground clearance 18cm (7"), lower hang point attachment, a racing bucket seat with a 4 point harness, adjustable billet aluminium hang points with brass bearings, the Solo Quad weighs just 31kg (Tandem 35kg).
LowBoy-2 Quads can be ordered with the items below & more !

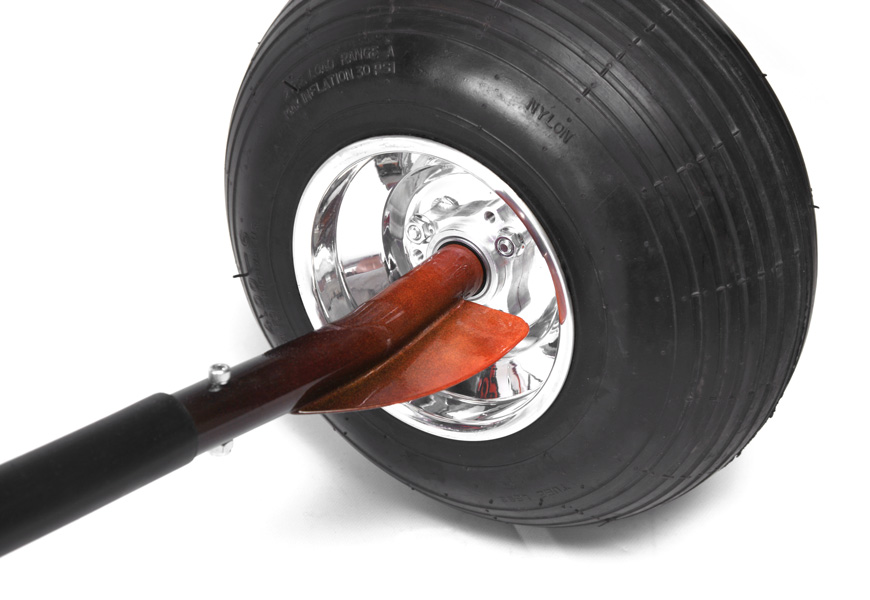

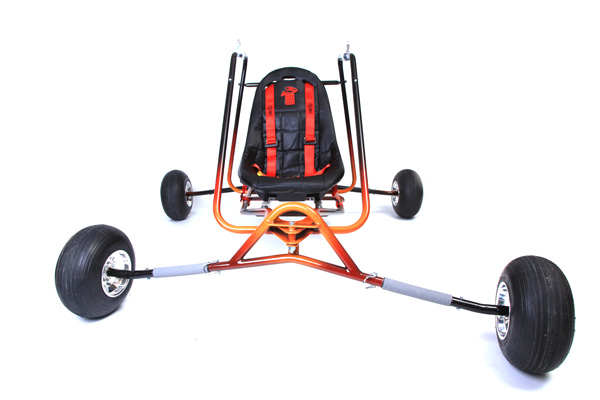

With the featured standard Aviation 15cm features light weight polished aluminium rims and 32cm ribbed aircraft style 2 ply tires the Quad width is 157cm front and 170cm rear, wheelbase length front to rear axle centre 150cm, with Fat beach tyres the Quad width is 172cm front and 183cm rear, length is 160cm, these widths can be altered by shortening the length of the axles.
Axles can be held in place via Quick pins for easy dismantling or bolted, although any slip joint in our quad frame can be Quick pined or Bolted permanently for trailer roll out applications.

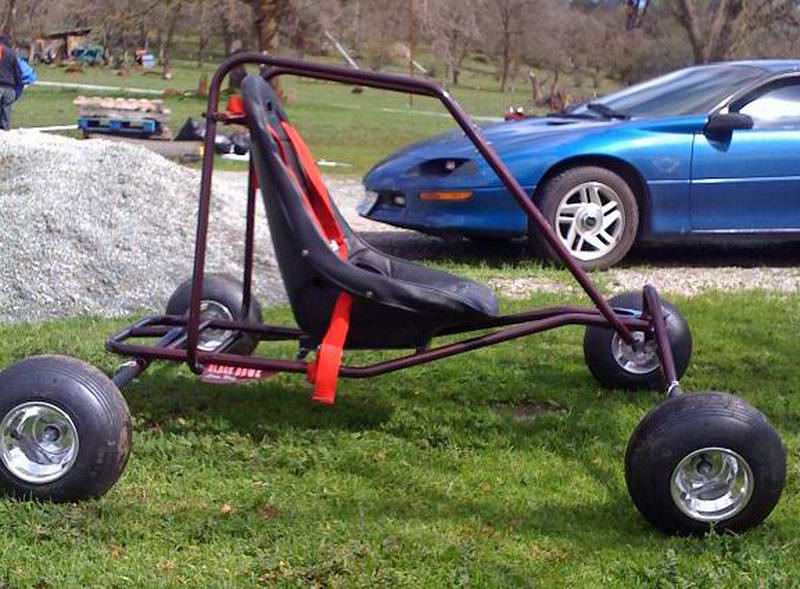

SOLO QUAD Weights:
- Lowboy-II Quad Chassis & Frame =18.0 kg
- Billet Hang Points =0.5 kg
- 4 x standard wheels & stub axles =11 kg

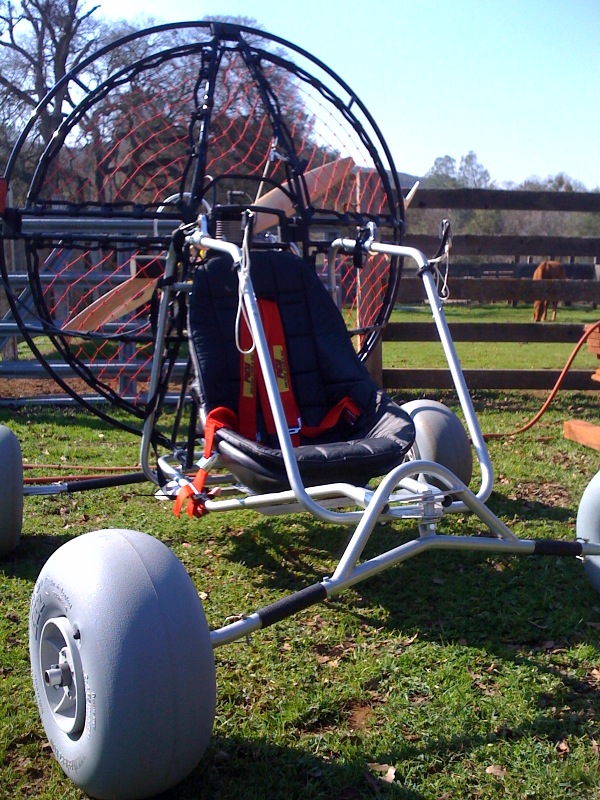

4 Fat beach wheels & stub axles =14 kg (optional)
- 4 x 25mm fibreglass axles =1.4 kg
- TOTAL WEIGHT: 30.9 kg
|

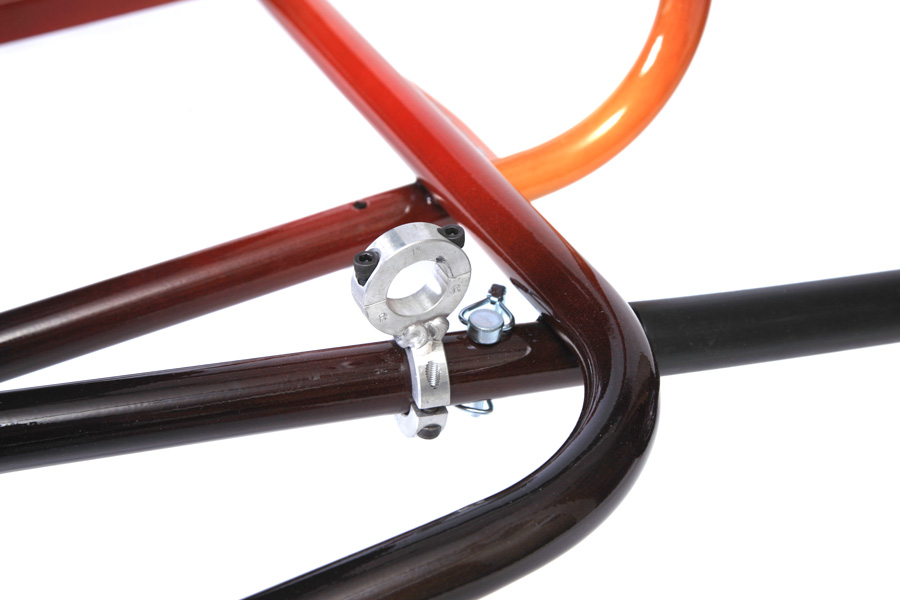

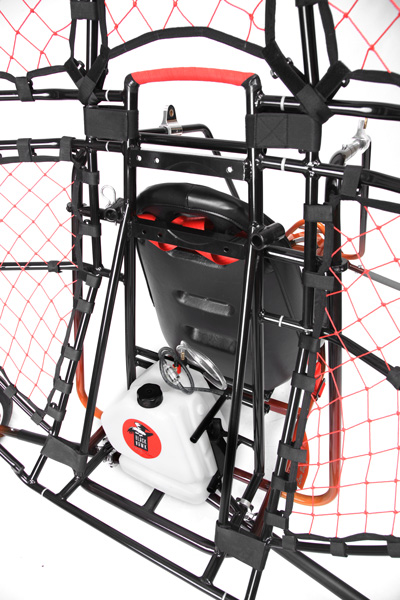

The engine cage chassis connection brackets that clamp to rear Quad Chaise & Roll Cage cross member of the LowBoy-2 are made of aluminium and held in place with Hi-Tensile bolts with Allan key heads.
More details:
The front and rear axles are 2.5cm (1") thick incredibly strong fibreglass
suspension axles, they slide into the lower frame
compartment instantly, to make it only 1.65mt (4') wide
for easy loading in the back of a pickup truck, or the complete LowBoy Quad disassembles quickly into cargo or suitcase for
shipping.

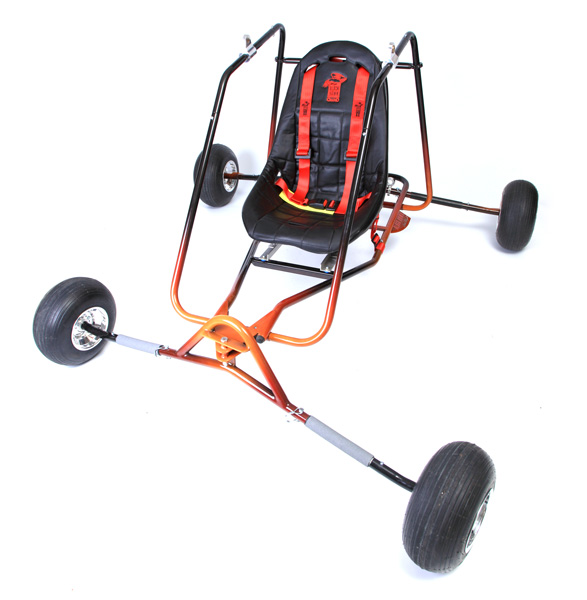

Let’s talk Paint! The Frame is sandblasted and then powder coat primer is applied. The final powder coat is completed in your choice of either Black Cherry Metallic with Clear Coat or Gunsmoke Silver Metallic with Clear Coat, Custom Colours on request !
Dismantled Sizes:
A Solo or Tandem Quad and all your equipment for Foot launch, even the XXLT cage can easily fitted into a Cargo Crate 1700mm x 800mm x 660mm high, many find that amazing !
We are currently designing a modular crate system to transform into two separate cargo crates 2/3 ratio that can be turned into a workstation, desk etc. the quad wheels will be able to be attached to the outside of the crate to enable your equipment to be easily moved around.
Seriously, you will NOT find a better looking more stable, lighter, better flying wheeled vehicle in Powered Paragliding!
Options:
- Custom colours
- Aluminium A-Assists
- Wheeleze Wheels and Tires
- Custom modifications for anyone with a handicap are free.
|

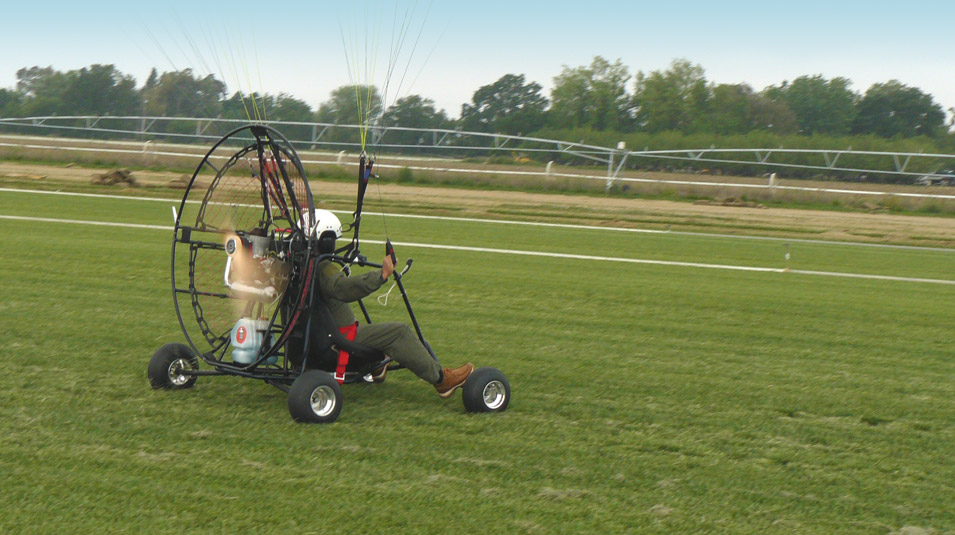

The LowBoy-2 Quad is by far the safest and easiest way to launch and fly
a powered paraglider ever made. The LowBoy-2 Quad is may times safer
then any other machine ever made as it will handle the worst and most
uneven terrain and off centre paraglider's and still stay upright on its
wheels.
It is incredibly strong as

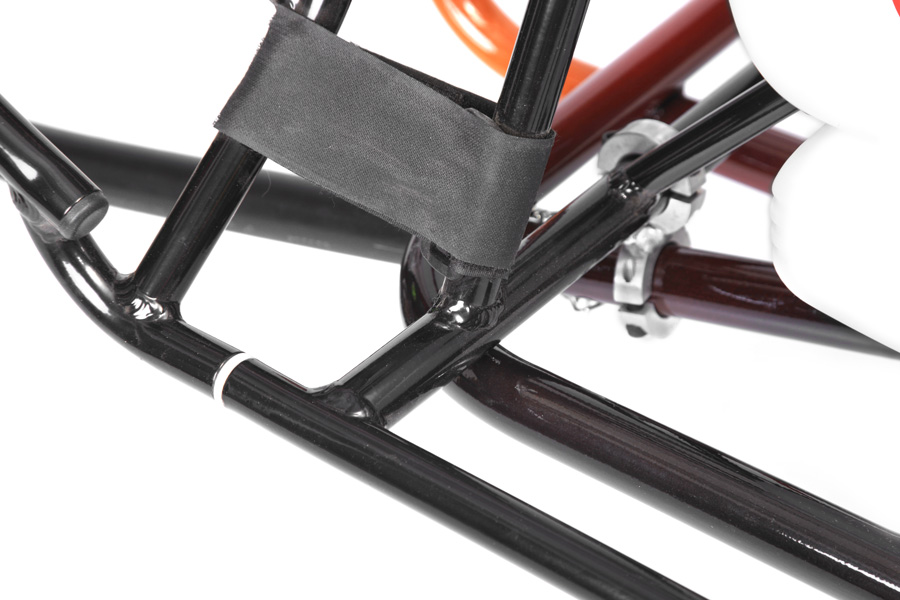

it is made with 4130 Chrome Moly steel construction, has fibreglass
axles for amazing suspension with over 30cm of wheel travel (will

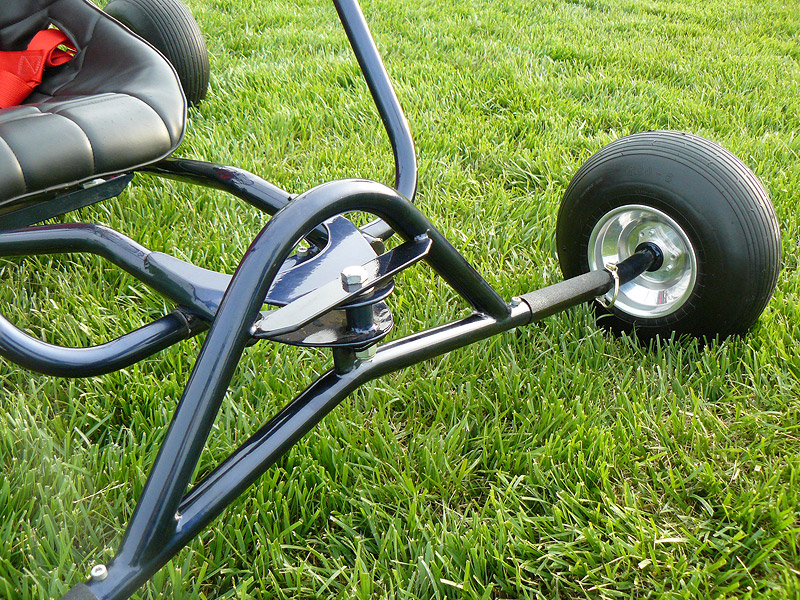

handle any terrain no matter how bad), has easy straight axle steering.

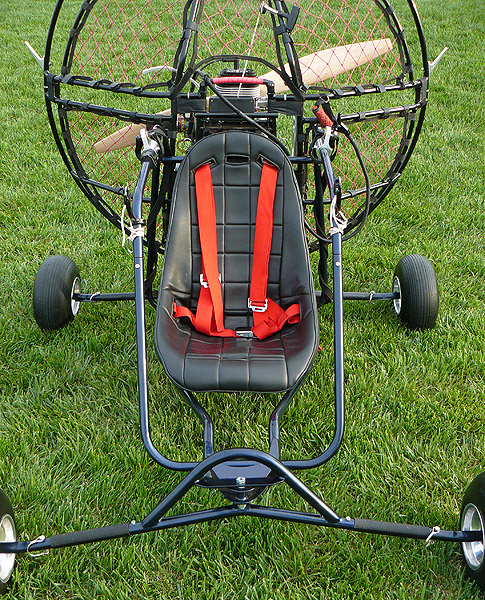

High speed wheel bearings, comfortable racing seat with cover and 4
point harness.

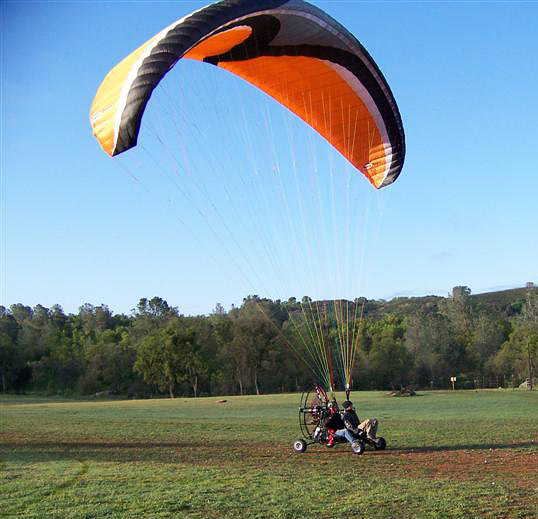

Can be used for single or tandem passenger flight, low centre of
gravity, super easy to launch and land. Extremely safe and fun to fly!
Entire frame can be disassembled in less then 5 minutes for compact

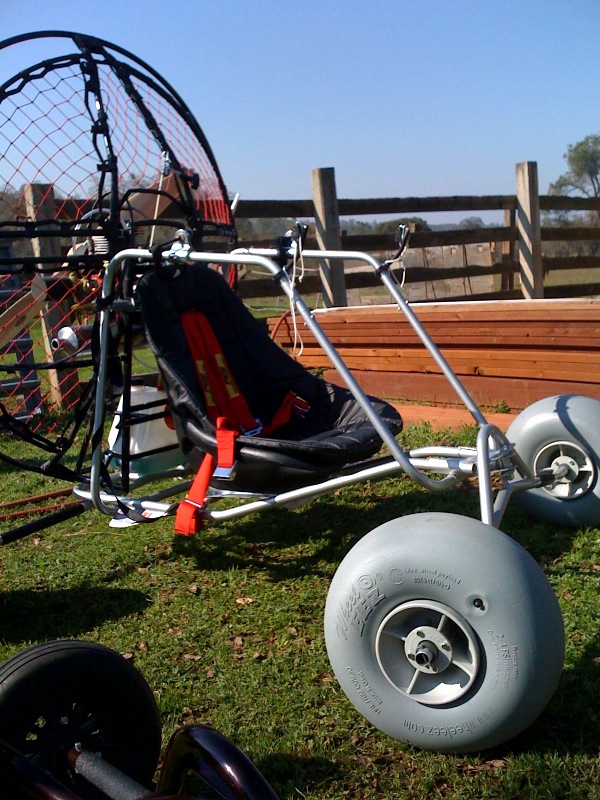

travel. Optional wheeleze balloon tires & wheels available.

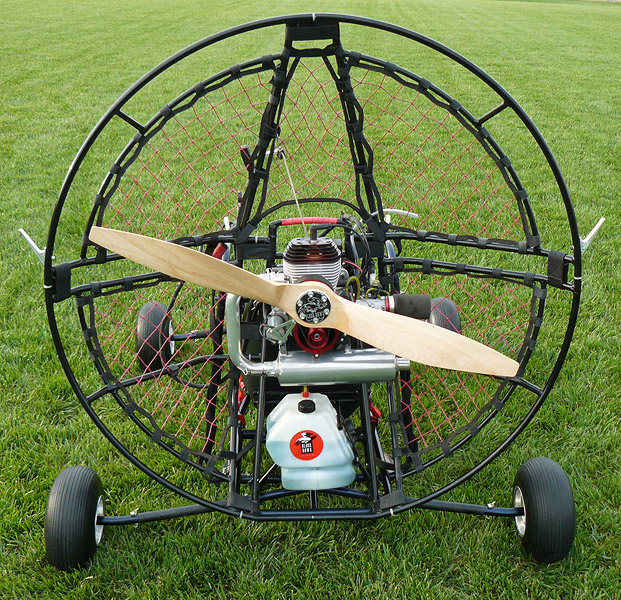

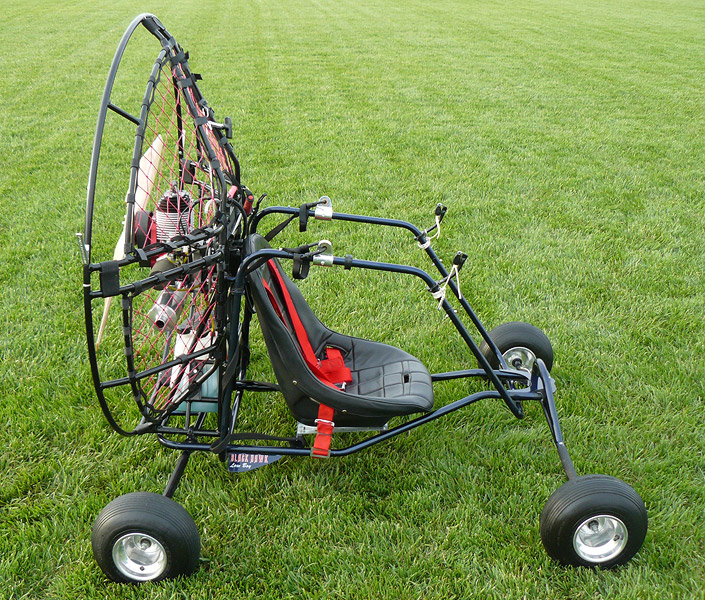

The LowBoy-2 Quad will fit and can be used with all major brands
of para engine cages on the market today, including: Fresh Breeze, Fly
Products and of course the very best of all the BlackHawk Paraengines.
For a Lowboy-II Quad,
we only recommend the Rhino or XXLT Rhino. For more info on the Cages visit
our Paraengine Cages page
|
